Welcome to our comprehensive guide to using the G00 CNC code. Whether you’re a beginner learning CNC programming or an experienced machinist, understanding the G00 CNC code is extremely important.
In this guide, we’ll break down everything you need to know about this rapid traverse command, including how, when, and why to use it.
What does a G00 code do?
G00 sets the CNC movement mode to rapid traverse, sometimes called rapid travel.
G00 controls the speed of the machine’s motion.
This code is used to move the CNC table and/or spindle around in a straight line (linearly) at the maximum speed.
When G00 is used, the machine ignores any feed rate set with the F code and instead goes as fast as possible.
Any combination of 1 or more of the machines axes can be moved in rapid mode. This includes the X, Y and Z axes.
Learn CNC Programming – It’s Easier Than You Think!
Learning G Code doesn’t have to be difficult…
If you know what to focus on.
Join our simple, easy-to-follow course, “G Code Made Easy: CNC Programming for Beginners“. We walk you through all the important codes – with simple explanations and real-world examples.
Want to become a super-skilled CNC programmer? Join now to take the shortcut to becoming a G Code Master today!Make Learning G Code Easy
G00 vs G0: Clearing the Confusion
Some people get confused about whether the extra 0 is required to be included with an G00 code.
To clear this up, there is no need to include the extra zero in the code. The CNC machine will read the code the same. It really is just a matter of preference.
Often you will see the full G00 code used in textbooks or other reference materials. In practice though, many prefer the shortened G0 code in their programs.
If you are working on your own, then go with whichever format you prefer. If you work in a bigger shop, make sure to stick to the format that the business has been using.
When to use the G00 code
G00 codes are used when the CNC programmer wants to move the tool very quickly. This happens at many points throughout a program.
Rapid positioning with G00 moves the machine at full speed. This allows the program to be run faster and decreases the part cycle time which means parts can be made faster.
G00 should only be used when there is no cutting action happening.
Using G00 while cutting your part would not give you good control over the cutting conditions and would most likely damage your part and/or your machine.
Use the G00 code to move the cutter to the location where it will start cutting or to other locations in the CNC such as the tool change position.
Other codes used with G00
The codes below are used with the G00 code or commonly found very close to a G00 command in the CNC program:
- M03 – Spindle on, clockwise
- M05 – Spindle stop
- M06 – Tool change
- M08 – Flood coolant on
- M09 – Coolant off
- N – Program line number
- S – Set spindle speed
- X – X axis location of the hole
- Y – Y axis location of the hole
- Z – Z axis location of the bottom of the hole
Format for using a G00 code
G00 X1.0 Y2.0 Z3.0
G00 is a simple code. You only need to specify the stop location for the movement.
Because G00 is a modal code, you don’t need to specify it on every line of code. If the next line of code after the one above was X4.0 Y5.0 Z6.0 then the machine would still move to the location in rapid mode. Because it’s modal it stays on until switched to another mode.
How to turn off a G00 code
There isn’t a specific cancel command for G00 like there is for canned cycles.
Instead, to turn G00 off you will need to switch it to another code in the same group of movement codes.
The other codes in the movement group are:
- G01 – Linear interpolation
- G02 – Clockwise circular interpolation
- G03 – Counterclockwise circular interpolation
Using any of these codes will turn G00 rapid movement off and switch to the new movement mode.
What to think about when using a G00 code
First, make sure you know what units you are working in.
Absolute vs incremental positioning mode
The second thing to know is how the machine will understand position locations.
Absolute positioning will move from a set zero location, such as your machines home location or a specified zero location on your part.
Incremental positioning will move relative to the machine’s current position.
The images below show the difference between the absolute and incremental positioning modes. The numbers in parentheses are the locations given to the the machine to make the move.
Notice how in absolute mode, all locations are relative to a single location, usually either the workpiece zero or machine home location.
In incremental mode, all locations are relative to the machine’s current location.
Start and stop locations
Make sure you understand the path that the tool will take from it’s start location to the new location.
Check where you are currently position wise (X, Y & Z location), where you will be moving to, and if there is anything in between the two locations.
The G00 code will move the machine very quickly to the new location. You don’t want anything in the way or to miscalculate your stop point.
Crashing your machine is never a good time.

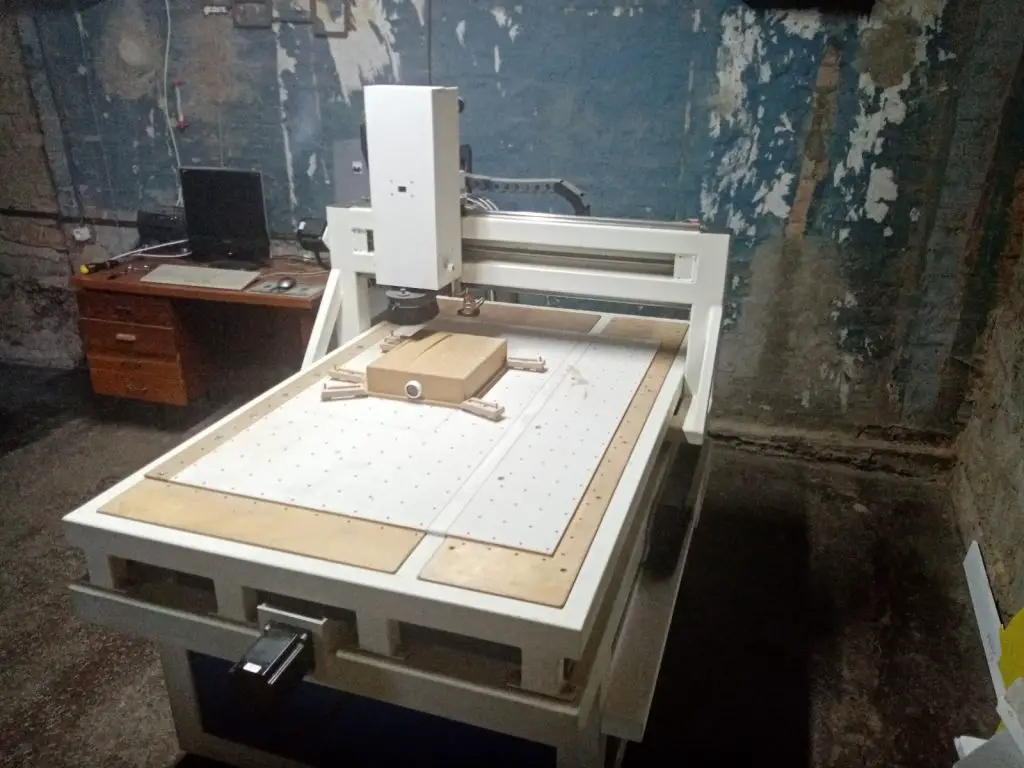

There are many different CNC machines throughout the world. Unfortunately, they don’t all behave exactly the same. For this reason you need to make sure you know your machine when it comes to how it moves, especially when it comes to rapid movement.

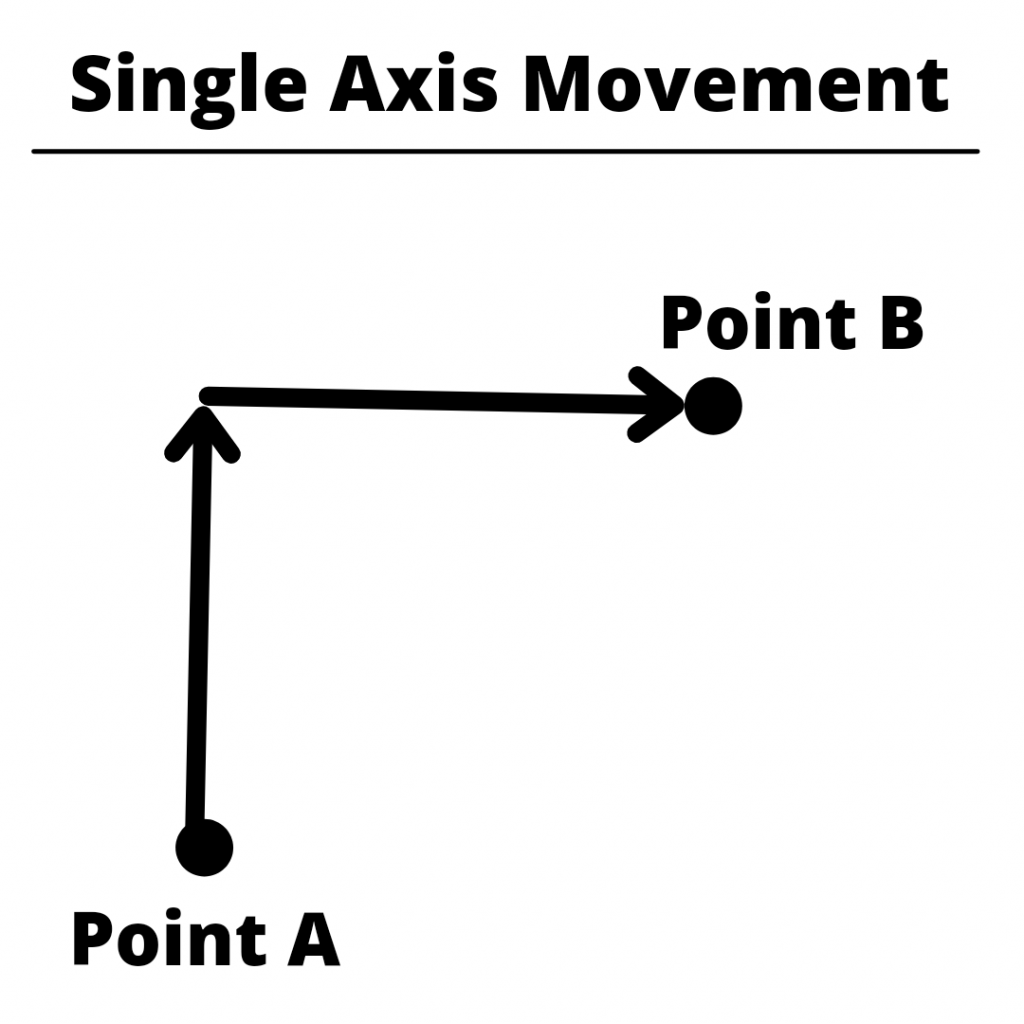

Some machines will move all 3 axes at once. Some will rapid one at a time.
Some machines will move the different axes at different speeds causing a “dog leg” movement where the machine doesn’t move in a single straight line.
Most machines will move all 3 at once, but make sure you know the path your CNC will take when using the G00 code.
It’s important to understand how you individual CNC machine will move because you need to make sure there isn’t something that the CNC will crash into in that path.
G00 [Rapid Travel] vs G01 [Linear Interpolation]
G01 is a very similar command. It also controls straight line movement, otherwise known as linear interpolation, of the CNC machine.
The difference between the two is that G01 will not move at maximum speed and will instead move at the last feed rate listed in the CNC program using the F command.
G01 is used for cutting motions. G00 is not.
CNC codes that are similar to G00
Note that all the movement codes listed below are modal. This means they will stay in the movement mode identified by the code until switched to a different mode.
